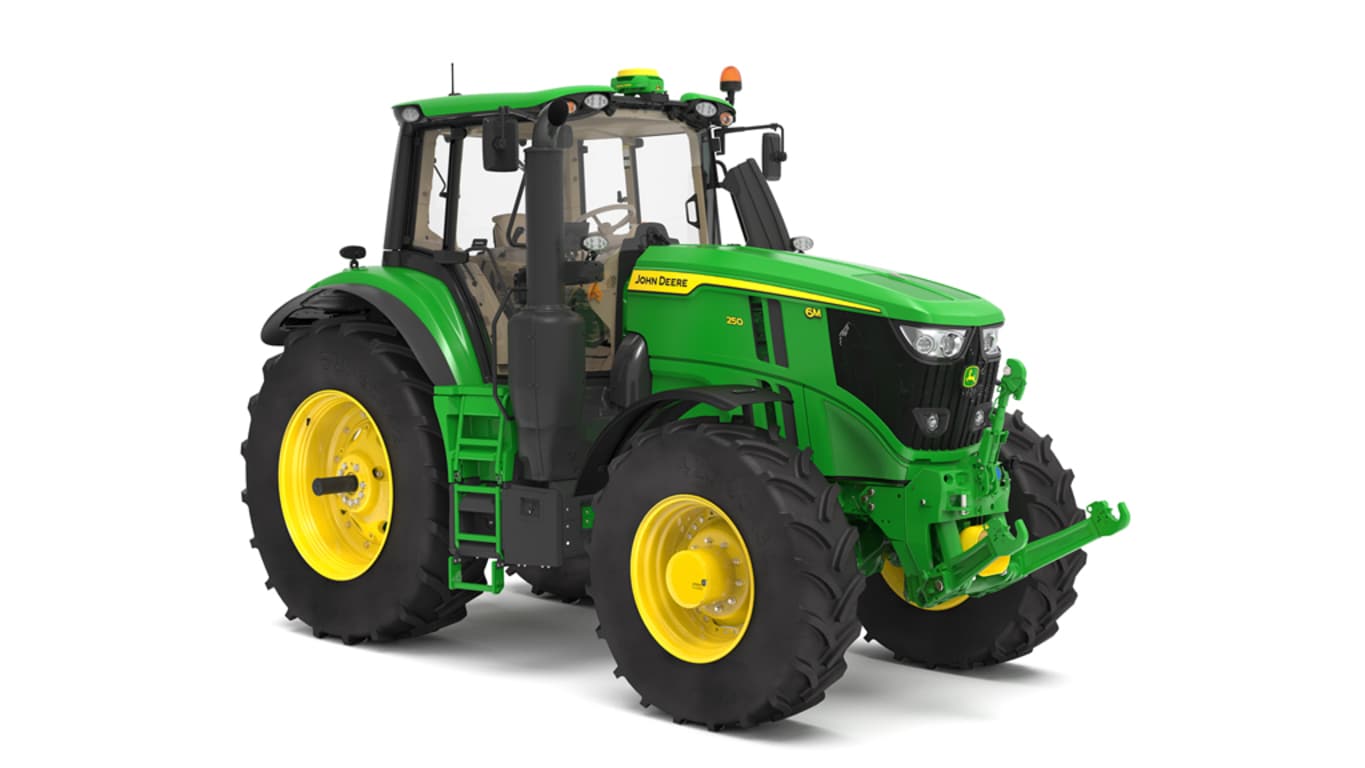

New 6M 250 Tractor

Specifications

Engine description	John Deere PowerTech™ PSS
Engine displacement	6.8 L 415 cu in.
Rated engine power	250 hp 184 kW
Maximum engine power	275 hp 202 kW
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated PTO power (hp SAE)	195 hp 145 kW
Maximum PTO power	At 1000 PTO rpm: 158 kW 212 hp
Transmission type	Standard: Infinitely variable transmission (IVT™) 40 km/h Optional: IVT 50 km/h
Hydraulic pump rated output	Standard: 60-cc pump: 155 L/min 41 gpm Optional: 85-cc pump: 195 L/min 51 gpm
Rear hitch category (SAE designation)	3N/3
Base machine weight	9600 kg 21,164 lb
Maximum PTO power at rated engine speed with intellegent power management (IPM)

Description	John Deere PowerTech™ PSS
Engine type	6068HL550
Engine family
Rated speed	2100 rpm
Aspiration	Dual turbochargers, variable geometry turbo with fixed geometry turbo in series
Cylinders liners
Emission level	Final Tier 4
After treatment type	Diesel particle filter (DPF) with diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF)
Displacement	6.8 L 415 cu in.

Rated power	250 hp 184 kW
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Rated PTO power (hp SAE)	195 hp 145 kW
Maximum PTO power	At 1000 PTO rpm: 158 kW 212 hp
Intelligent Power Management (IPM)	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp
Power boost	10 percent
Maximum engine power	275 hp 202 kW
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Engine peak torque	1171 Nm
Drawbar power
PTO torque rise	40 percent
Fuel injection system and control
Air cleaner type
Maximum PTO power at rated engine speed with intellegent power management (IPM)
Maximum engine torque (without power boost at 1.600 engine rpm)
Maximum engine power with intelligent power management (IPM)

Type	Standard: Infinitely variable transmission (IVT™) 40 km/h Optional: IVT 50 km/h
Integrated Electric Power Generation
Reverser	Electronic left-hand reverser
Clutch; wet/dry
Creeper	Not available

Type	Standard/optional: Pressure-and-flow compensated (PFC) system with Load Sensing function
Pump rated output	Standard: 60-cc pump: 155 L/min 41 gpm Optional: 85-cc pump: 195 L/min 51 gpm
Available flow at a single rear SCV
Available flow at front SCVs
Number of rear selective control valves (SCVs)	Standard: Two ISO couplers Optional: Two to four ISO couplers
Number of mid selective control valves (SCVs)	Up to three
Number of front selective control valves (SCVs)
Joystick SCV control	Mechanical/electrical
Auxiliary hydraulic features
SCV control
Available oil flow at a single rear SCV (200 Type)
Available oil flow at a single rear SCV (450 Type)
Available oil flow at a single rear SCV (450E Type)

Hitch draft control load sense type
Remote control valves available	Standard
Hitch category (SAE designation)	3N/3
Rear hitch lift capacity (SAE designation)	Standard: Category 3/3N: 5900 kg 12,996 lb Optional: Category 3/3N: 6625 kg 14,593 lb
Maximum lift capacity behind lift points	Standard: Category 3/3N: 8800 kg 19,383 lb Optional: Category 3/3N: 9900 kg 21,806 lb
Lift capacity at standard frame
Sensing type	Electronic at lower link
Rear axle differential lock	Electrohydraulically with oil-cooled clutch
Maximum lift capacity directly at coupling points
Throughout lift capacity, 610 mm behind the coupling points

Drawbar category	Category 3
Maximum vertical load	1800-3000 kg (3968-6614 lb) Maximum vertical load dependent on drawbar position

Type	Electrohydraulically operated, oil-cooled, multi-disc design
Engine rpm (at rated PTO speeds)	540 PTO: 1960 rpm 1000 PTO: 1960 rpm
Economy PTO speeds
Reverse PTO speeds
Multispeed PTO option availability
Ground speed PTO option availability
PTO actuation	In-cab switch and optional external fender-mounted remote control
Engine rpm at rated PTO speeds (540/1.000)
Engine rpm at rated PTO speeds (540/540E/1.000)
Engine rpm at rated PTO speeds (540E/1000/1.000E)

Category	3N
Electric power	Seven-pin electrical socket
Standard lift capacity	At hook ends: 3300 kg 7269 lb
Front power take-off (PTO)	Electrohydraulically engaged with oil-cooled, multi-disc design
PTO speed	1000 PTO: 1967 rpm

Type	Standard: Rack-and-pinion rear axle - 100-mm (3.94 in.) shaft (2550-mm/100.4 in.) Optional: flange-type rear axle Rack-and-pinion rear axle - 100-mm (3.94 in.) shaft (3009-mm/118.5 in.)
Final drive type
Differential controls
Axle type
Brakes, type and control
Rear differential lock	Electrohydraulically with oil-cooled clutch
Load rating

Type	Standard: MFWD Optional: Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes
Front axle differential lock	Standard: Self-locking differential Optional: hydrualic actuated
Load rating

Front	420/85R30
Rear	520/85R42
Wheel tread range
Turning radius with brakes
Turning radius without brakes
Central Tire Inflation System (CTIS)

Tread spacing
Drive type
Track width
Mid-rollers

Type	Dynamic load sensing, hydrostatic, flow metering

Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes

Alternator size	Standard: 14 V/250 amp
Battery options	Standard: 12 V/295 amp-hr
Working lights
Type of bulb in headlight (Halogen, Zenon, LED)
Type of bulb in beacon (Halogen, Zenon, LED)
dB(A) rating for backup alarm
Total cold cranking amps

Rollover protective structure, OOS	Gearshift location - console/floor Console
Seat	Standard: Standard seat with air suspension Optional: Economy seat with mechanical suspension
Cab suspension	Optional: Mechanical Cab Suspension (MCS)
Instructional seat	Optional
Display	Cornerpost display (right-hand A-post) Functionality: Performance monitor and individual settings
Radio	Standard: Standard AM/FM stereo
Inner cab volume	3.0 m3 105.9 cu ft
dB(A) rating	70 dBA
Cab glass area	4.85 m2
Safety glass rating
Front visibility

Wheelbase	2900 mm 114.2 in.
Overall width	2550 mm 100.3 in. (420/85R30 & 480/80R46)
Overall length	5084 mm 200.2 in. (inc. weight bracket)
Overall height	3200 mm 126.0 in.
Drawbar clearance
Front axle center	545 mm 21.4 in. (ground clearance)
Approximate shipping weight, Open;Cab	Cab: 8500 kg 18,739 lb

Base machine weight	Front axle 3840 kg 8466 lb Rear axle 5760 kg 12,699 lb 9600 kg 21,164 lb
Maximum ballast level
Maximum permissible weight	14,200 kg 31,306 lb

Crankcase oil volume	23.5 L 6.2 U.S. gal.
Fuel tank	420 L 111.0 U.S. gal.
Diesel exhaust fluid (DEF) tank	25 L 6.6 U.S. gal.
Cooling system	34 L 9.0 U.S. gal.
Transmission-hydraulic system	AutoPowr/IVT: 80.0 L 21.0 U.S. gal.

Interval for engine oil change	500 hours
Interval for hydraulic/transmission oil change	1500 hours
Interval for engine coolant change	6000 hours

Loader	680R
Lift capacity at full height	MSL: 2749 kg 6061 lb
Maximum lift height	MSL: 4.4 m 175.3 in.
Leveling type

Guidance	Optional: AutoTrac™ with Universal Display
Telematic	Standard: JDLink™
Remote diagnostics	Standard: JDLink™
Connectivity

AutoTrac ready
ISOBUS ready
CommandCenter video inputs
Immobilizer
Side slope rating
Uphill/downhill slope rating
Country of manufacture	Germany

Date collected	25-Jun-24
